[아두이노]RF모듈을 이용하여 마우스 데이터 받아보기

개요>>

심심하고 따분할 때 누가 날 위로해줄 사람이 없다면 사용하지 않는 마우스를 무선 송신기로 변경시켜보자.

그리하면 마우스 조작으로 무선 수신기로 데이터를 받아서 수신쪽에서 이러쿵 저러쿵 조작이 가능하지 않을까?

준비물>>

1)무선 송수신 모듈

2)아두이노 송수신용 2개

3)기타 배선 및 헤더

방법>>

1) 무선송수신 모듈을 편리하게 사용하기 위하여 VirtualWire를 http://www.open.com.au/mikem/arduino/ 에서 1.5(2011년 6월21일 현재 최신)버전을 다운 받아서 arduino\libraries 폴더 안에 압축을 풀기.

2) P/S2 마우스 라이브러리를 http://thepotterproject.net/TPPNews/?page_id=180을 참고하여 같은 방법으로 라이브러리 등록.

이때 홈페이지 설명과 같이 ps2.h 에 include된 Proram.h를 Arduino.h로 변경할것.

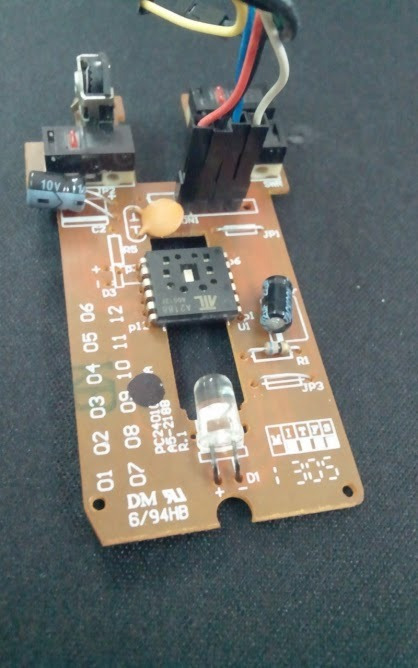

아주 오래전 부품을 적출하기 위해 분해 해논 마우스 발견 케이스는 버리고 기판만 남아있다.

사실 이 마우스 기판이 정상작동 하는지는 잘 모르겠고, 발광 다이오드도 하나가 보이지 않는다.

어찌 되었든...

 http://thepotterproject.net/TPPNews/?page_id=180 이곳에서 마우스 핀맵을 알수 있었다.

왼쪽부터 Vcc(5v), Gnd, data, sck, nc 테스트를 위해 배선을 버리고 헤더 납땜.

아두이노 소스는

http://cafe.naver.com/arduinostory/9850

세상 참 넓군.. 나와 같은 생각을 하다니..

수신측 아두이노 스케치

#include <VirtualWire.h>

#define RXpin 16

#define PW 10

// pin mapping to analog PWM

unsigned char FLPin=3;//Foward Left

unsigned char FRPin=5;//Foward Right

unsigned char BLPin=13;//Backward Left

unsigned char BRPin=11;//Backward Right

unsigned char FLPower=0;

unsigned char FRPower=0;

unsigned char BLPower=0;

unsigned char BRPower=0;

unsigned char BasePower=0;

signed char ElevatorToggle=0;//0 for stop 1 for down 2 for up

boolean EnterNoInput=false;

boolean Emergency = false;

boolean Landing = false;

unsigned int Elapsed =0;

unsigned int EntryMillis = 0;

signed char name;

signed char arg1;

signed char arg2;

void Balancing(signed char);

void NoInput();

void Shift();

void Scend();

void Elevator();

void SetMotorPower();

//use as global variable so no passing overhead -> faster

void setup(){

pinMode(PW,OUTPUT);

digitalWrite(PW,HIGH);

    vw_set_rx_pin(RXpin);

    vw_set_ptt_inverted(true);

    vw_setup(2000);  // Bits per sec

    vw_rx_start();

    Serial.begin(9600);

    pinMode(FLPin, OUTPUT);

    pinMode(FRPin, OUTPUT);

    pinMode(BLPin, OUTPUT);

    pinMode(BRPin, OUTPUT);

    Serial.print("started");

}

void loop(){

    uint8_t buf[VW_MAX_MESSAGE_LEN];

    uint8_t buflen = VW_MAX_MESSAGE_LEN;

    if (vw_get_message(buf, &buflen)) // Non-blocking

    {

EnterNoInput = false;

Emergency = false;

Landing = false;

Elapsed = 0;

        name = buf[0];

        arg1 = buf[1];

        arg2 = buf[2];



        Serial.print("name:");

        Serial.print(name,DEC);

                Serial.print(" arg1:");

        Serial.print(arg1,DEC);

                Serial.print(" arg2:");

        Serial.print(arg2,DEC);

        Serial.println("");

Shift();

Scend();

Elevator();

    }

    else

    {//NoInput();

  }

    SetMotorPower();

  delay(25);

}

//function will be called successively

//so the function only need to slow all motor down

//1 step at each call Give delay as it needs by caller

void Balancing(signed char val = 0)

{

BasePower>0 ? BasePower += val : 0;//zero?

FLPower = FRPower = BLPower = BRPower = BasePower;

}

//millis() to count elapsed time since board started

void NoInput()//called when there is no Input

{

if(EnterNoInput ==false)

{ EnterNoInput=true;

EntryMillis = millis();

}

else if(EnterNoInput == true)

{

Elapsed = millis()-EntryMillis;

if(Elapsed > 2000)//no input for 2 sec

{ Balancing(-1); delay(15);}//Give delay as it needs

else if(Elapsed > 200)//no input for 0.2 sec

{ Balancing(0); }

}

}

void Shift()

{

if(name == B00000001 && (arg1 != 0 || arg2 != 0))

{//it's shift command!

                FLPower = FRPower = BLPower = BRPower = BasePower;

signed int TempResult = FLPower + arg1;

                TempResult > 255 ? FLPower = 255 : 0;

                TempResult < 0 ? FLPower = 0 : FLPower += arg1;



                TempResult = BLPower + arg1;

                TempResult > 255 ? BLPower = 255 : 0;

                TempResult < 0 ? BLPower = 0 : BLPower += arg1;



                TempResult = FRPower - arg1;

                TempResult > 255 ? FRPower = 255 : 0;

                TempResult < 0 ? FRPower = 0 : FRPower -= arg1;;



                TempResult = BRPower - arg1;

                TempResult > 255 ? BRPower = 255 : 0;

                TempResult < 0 ? BRPower = 0 : BRPower -= arg1;;





                TempResult = FLPower - arg2;

                TempResult > 255 ? FLPower = 255 : 0;

                TempResult < 0 ? FLPower = 0 : FLPower += arg2;



                TempResult = FRPower - arg2;

                TempResult > 255 ? FRPower = 255 : 0;

                TempResult < 0 ? FRPower = 0 : FRPower += arg2;



                TempResult = BRPower + arg2;

                TempResult > 255 ? BRPower = 255 : 0;

                TempResult < 0 ? BRPower = 0 : BRPower -= arg2;



                TempResult = BLPower + arg2;

                TempResult > 255 ? BLPower = 255 : 0;

                TempResult < 0 ? BLPower = 0 : BLPower -= arg2;



                name = arg1 = arg2 = 0;//prevent unintentional automatic moving

}

}

void Scend(){

  if(name == B00000010 && (arg1 == 0 && arg2 != 0))

  {

    signed int TempResult = BasePower + arg2;

    TempResult>255 ? BasePower = 255 : 0;

    TempResult<0 ? BasePower = 0 : BasePower+=arg2;

    FLPower = FRPower = BLPower = BRPower = BasePower;

  }

}

void Elevator(){

  if(name == B00000011 && (arg1 == 0 && arg2 == 1))

  {

    ElevatorToggle += 1;

    ElevatorToggle %= 3;

  }

}

void SetMotorPower(){

analogWrite(FLPin, FLPower);

analogWrite(FRPin, FRPower);

analogWrite(BLPin, BLPower);

analogWrite(BRPin, BRPower);

          Serial.print("FL: ");

          Serial.print(FLPower,DEC);

          Serial.print("FR: ");

          Serial.print(FRPower,DEC);

          Serial.print("BL: ");

          Serial.print(BLPower,DEC);

          Serial.print("BR: ");

          Serial.println(BRPower,DEC);

}

송신측 아두이노 스케치

#include <ps2.h>

#include <VirtualWire.h>

#define TXpin 9

#define PS2CLK 10

#define PS2DATA 8

PS2Mouse mouse(PS2CLK, PS2DATA);

////////////////////////////////////////////////////////////////

//int is signed 2byte data type

//char is signed 1byte data type

//casting (char) for sending as binary or itoa would be applied

unsigned char ShiftSensitivity=50; //1~127

unsigned char ScendSensitivity=10; //1~127

signed int cY1;

signed int cS1;

signed int cY2;

signed int cS2;

boolean sSwitch=false;

////////////////////////////////////////////////////////////////

//how to read 3 byte from RX side? read/read/read?

////////////////////////////////////////////////////////////////

//TX side Source Code

boolean Transfer(signed char *, signed char *, signed char *);

void Shift(MouseInfo *);

void Scend(MouseInfo *);

void Elevator(MouseInfo *);

void Sensitivity(MouseInfo *);

void setup()

{

    vw_set_tx_pin(TXpin);

  mouse.init();

    vw_set_ptt_inverted(true); // Required for DR3100

    vw_setup(2000);

  Serial.begin(9600);

  Serial.println("ready");

}

/*

 * get a reading from the mouse and report it back to the

 * host via the serial line.

 */

void loop()

{

  MouseInfo mouseInfo;

  mouse.getData(&mouseInfo);

  Shift(&mouseInfo);

  Scend(&mouseInfo);

  Elevator(&mouseInfo);

  Sensitivity(&mouseInfo);



}

boolean Transfer(signed char *Name, signed char *First, signed char *Second){



  char data[3];

  data[0]=*Name;

  data[1]=*First;

  data[2]=*Second;

  boolean ret=vw_send((uint8_t *)data, 3);

  vw_wait_tx();

  Serial.print("name");

  Serial.print(*Name);

  Serial.print("First");

  Serial.print(*First);

  Serial.print("Second");

  Serial.print(*Second);

  Serial.println("");

  return ret;



}

//call by reference syntax? should be corrected

void Shift(MouseInfo *m){

  if((m->x != 0 || m->y != 0) && m->rightClick == 0 && sSwitch==false )

  {

      signed char name = 1;

      signed char zero = 0;

      signed int y = m->y/ShiftSensitivity;

      signed int x = m->x/ShiftSensitivity;

      signed char bytey = y>127 ? 127 : y;

      bytey = y<-128 ? -128 : y;

      signed char bytex = x>127 ? 127 : x;

      bytex = x<-128 ? -128 : x;

    if(m->middleClick == 1)

    {//right angle move

      abs(bytey)>=abs(bytex)? Transfer(&name,&zero,&bytey) : Transfer(&name,&bytex,&zero);

    }

    else Transfer(&name,&bytex,&bytey);//normal move

  }

}

void Scend(MouseInfo *m){//cumulative on RX side

  if((m->scroll != 0) && m->rightClick == 0 && sSwitch==false){

    signed char name = 2;

    signed char arg1 = 0;

    //use int because it multiply

    signed int scroll = m->scroll * ScendSensitivity;

    signed char bytescroll = scroll>127 ? 127 : scroll;

    bytescroll = scroll<-128 ? -128 : scroll;

    Transfer(&name,&arg1,&bytescroll);

  }

}

void Elevator(MouseInfo *m){//cyclic toggle on RX side : up/stop/down

  if(m->leftClick != 0 && m->rightClick == 0 && sSwitch==false){

    signed char name,arg1,arg2;

    name = 3;

    arg1 = 0;

    arg2 = 1;

    Transfer(&name,&arg1,&arg2);

  }

}

void Sensitivity(MouseInfo *m){

  if(m->rightClick == 1 && sSwitch==false){

    sSwitch = true;

    cY1 = m->cY;

    cS1 = m->cScroll;

  }else if(m->rightClick == 0 && sSwitch==true){

    sSwitch = false;

    cY2= m->cY;

    cS2= m->cScroll;

    ShiftSensitivity = abs(cY2-cY1);

    ScendSensitivity = abs(cS2-cS1);

  }



}
